Flavor Overload

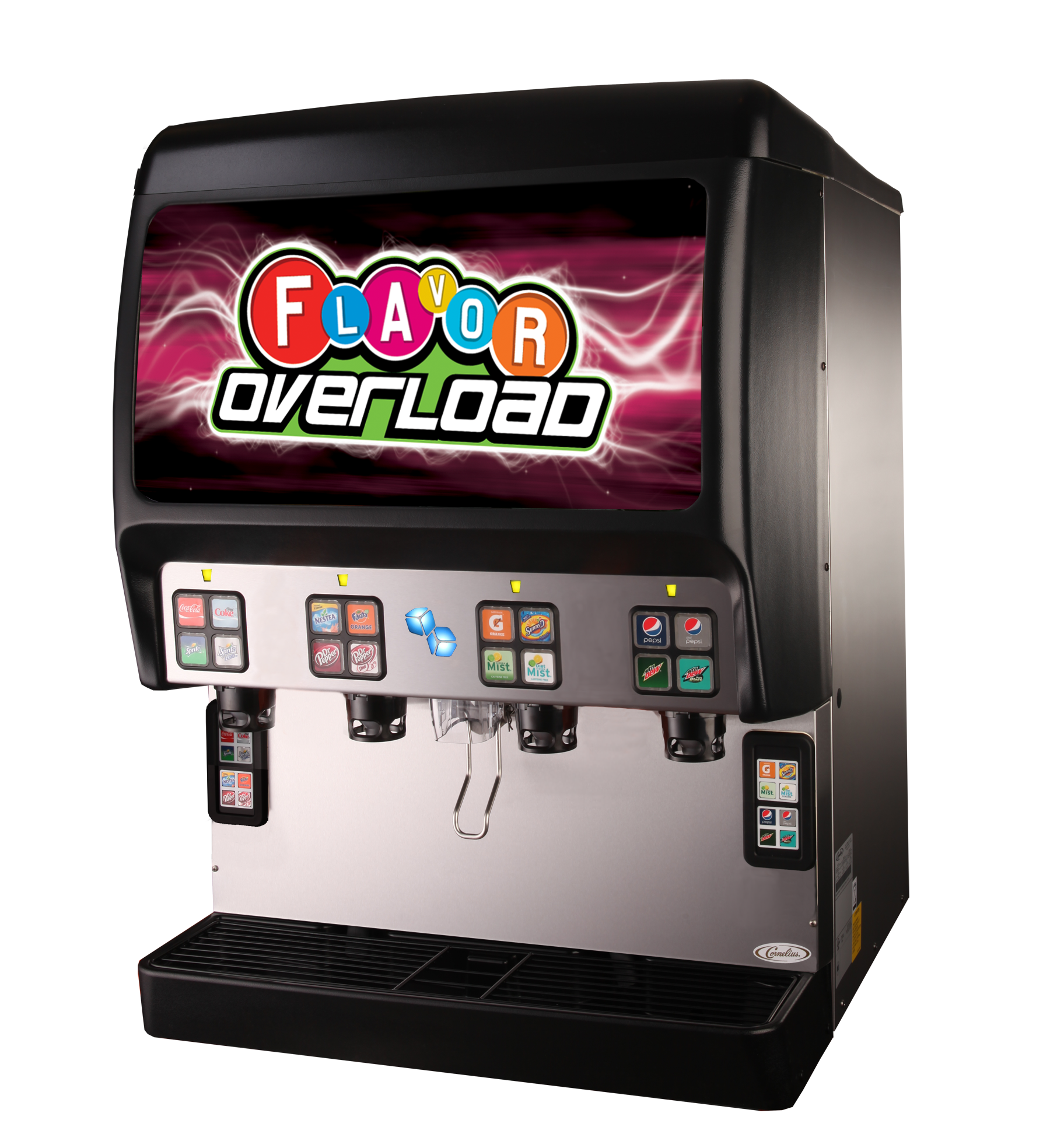

Flavor Overload With 16 MFV Valves Cold Carbonation No Flavor shots Meets ADA With Drip Tray

Features

  • Large Ice Capacity - 255 lb ice storage will meet your peak demand
  • Brand Density - 16 brands and 4 flavor shots in 30 inch foot print
  • Go to Feature J - No flavor shots for this unit
  • ABS Thermoformed Plastic Durabide™ Design - Provides durability and ensures all ice in the hopper is dispensable
  • Gravity Ice Dispensing With Positive Shut-Off - Provides excellent ice targeting
  • TotalFlex™ - Easily changes from carbonated to non-carbonated drinks
  • Modular Design - Allows for easy component access from the front of the unit
  • Readily Accepts Top-Mounted Ice Makers - Can top mount cuber and chunklet ice makers

Product Downloads

Product Specs

Illustrated Parts

Ice Adaptor Kit Matrix

Accessory Sheet

Operator Manual

[ENG]

Installation Manual

[ENG]

Service Manual

[ENG]

621057636

Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF, CE
  • Electricals Requirements 115 V +/- 10% (only requires single outlet)
  • Cup Clearance10.125 in (25.72 cm)
  • Number of Valves16MFV
  • Ice Storage Capacity 255 lb ice bin capacity for cubed & chunklet (compressed) ice
  • Valve Type16 push button brands
  • Unit Dimensions (Overall)30 in (76.2 cm) x 30 in (76.2 cm) x 41 in (104.14 cm) (W x D x H)
  • Shipping Weight365 lb (166 kg)
  • Beverage ManifoldingTotalFlex™
  • Drink Performance and Cooling Capacity2-4 fl.oz./sec valves
  • Graphic Size Overall(template available)
  • Graphic Size Viewable(template available)
  • Standard FeaturesTimed agitation, beverage key switch and 4" legs
  • Ice Maker Adaptor Kit Available (Yes/No)Yes
  • Back Room Package Required (Yes/No)Yes
  • Counter Weight320 lb (plus ice weight)
  • AMP Draw120V / 60Hz / 9 .3 Amps
  • Water Supply Pressure50-60 psi at pump
  • CO275 psi at carbonator tank
  • Flow Rate For Brands60 psi/min
  • Brand Syrup Supply Pump Pressure20-25 psi/max
