569200018

WCC500

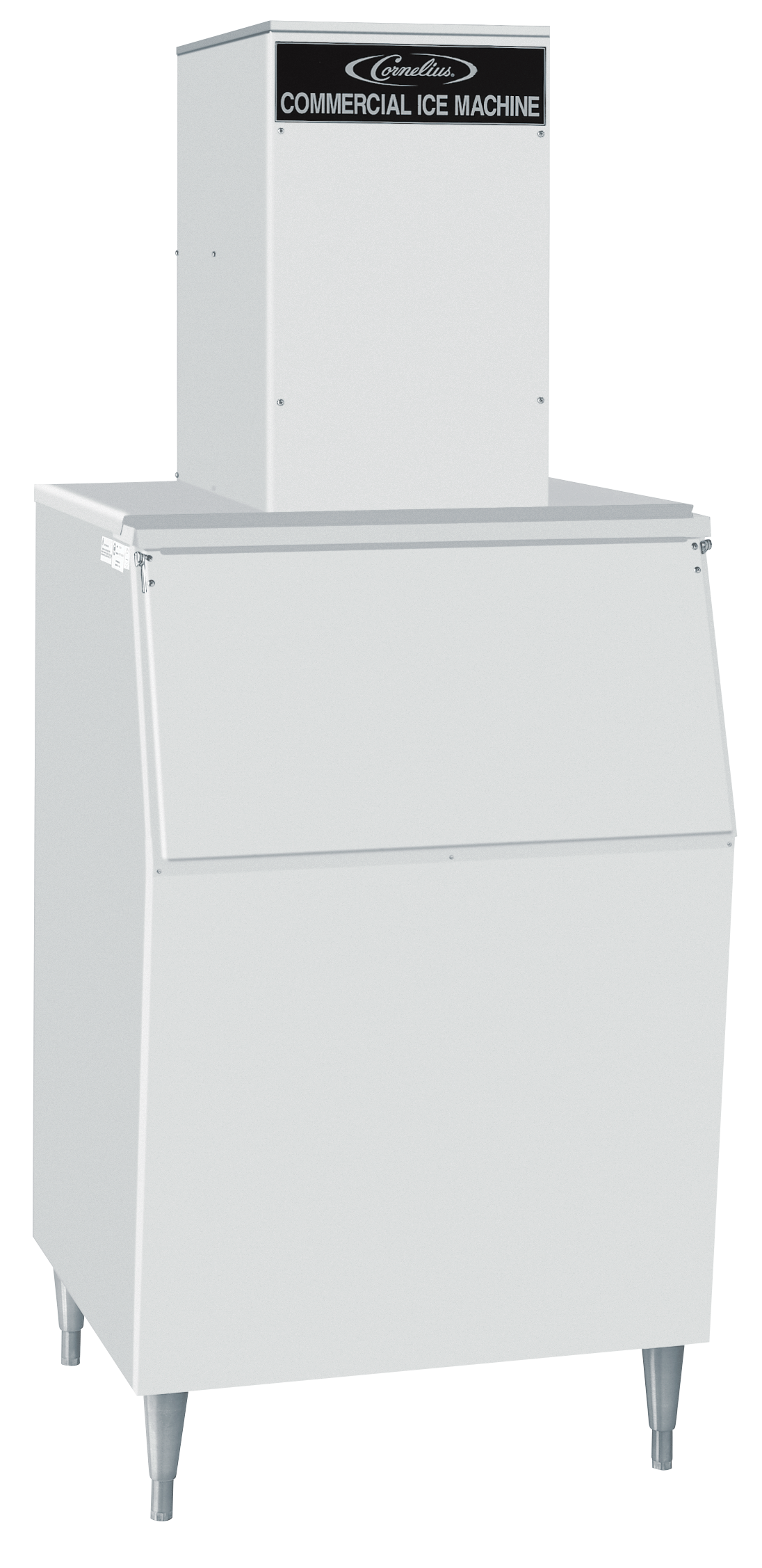

Chunklet WCC500 Modular Continuous – Air

Features

  • Small Footprint - Available compact design, only 14.5” wide
  • Stainless Steel Exterior - Durable and corrosion-free
  • Ice Production - High yield; Ideal for use in demanding, high volume applications
  • Environmentally Responsible - Energy efficient and uses CFC-free, R404A refrigerant
  • Efficient - Uses 100% of water

Product Downloads

Product Specs

Illustrated Parts

Owner's Manual

Installation Manual

[ENG]

Service Manual

[ENG]

569200018

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • Description500 Series Modular Continuous Chunklet WCC500A
  • Dimensions14.5 in (36.83 cm) x 25 in (63.5 cm) x 25 in (63.5 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz / 1 Phase
  • Water Pressure Required10 to 90 psi
  • Shipping Weight142 lb (64 kg)
  • Compressor/RefrigerantR404A
  • Ambient temperature50°F to 104°F
  • Type of MachineModular
  • Ice Production 70/50 lb369 lb (167 kg)
  • Type of CondenserAir Cooled
  • Ice Production 90/70 lb285 lb (129 kg)
  • Ice TypeNugget
  • Min. Circuit20 Amps
