631100049

CB2323 Universal

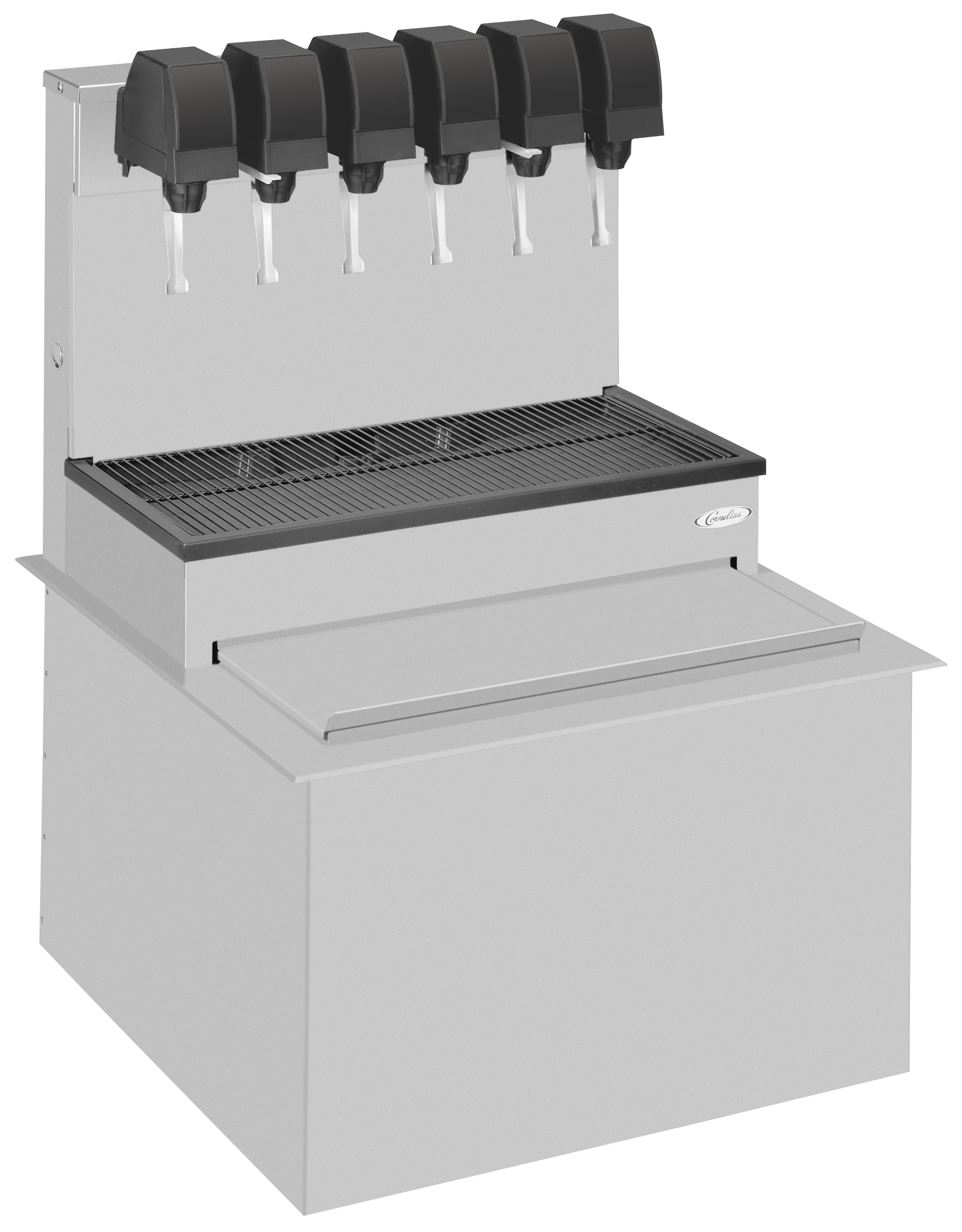

CB2323 Universal Drop-In 6 UFB-1™ Sanitary Lever Valves Stainless Steel Tower No Merchandiser 80 LB

Features

  • Large Ice Capacity - 80 lb bin to meet peak demand
  • Valve - Standard UFB-1™ sanitary lever valves
  • Foamed Insulation - Polyurethane foamed insulation prevents condensation
  • Front Inlet Fitting   - Easy to install beverage lines
  • Stainless Steel Construction - Durable and easy to clean
  • Removable Front and Back Panels - Ease of service
  • Extra Wide Drain Pan - Provides extra room for cup staging and is removable for cleaning

Product Downloads

Product Specs

IDC Pro Software Download

Operator Manual

[ENG]

Installation Manual

[ENG]

631100049

Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF, CE
  • Electricals Requirements120 V / 60 Hz /1 Amp
  • Cup Clearance9.75 in (24.77 cm)
  • Number of Valves6
  • Ice Storage Capacity80 lb (36 kg)
  • Valve TypeUFB-1™ sanitary lever
  • Unit Dimensions (Overall)23 in (58.42 cm) x 23 in (58.42 cm) x 33 in (83.82 cm) (W x D x H)
  • Shipping Weight225 lb (102 kg)
  • Cut Out (Inches)23.25 in (59.06 cm) x 23.25 in (59.06 cm)
  • Beverage Manifolding5-1 carb to non carb manifold
  • Drain ConnectionWater 0.375" (9.5 mm) barb fitting Syrup 0.375" (9.5 mm) barb fitting
  • Drain Size0.75 in (19.11 mm) flexible hose
