631100055

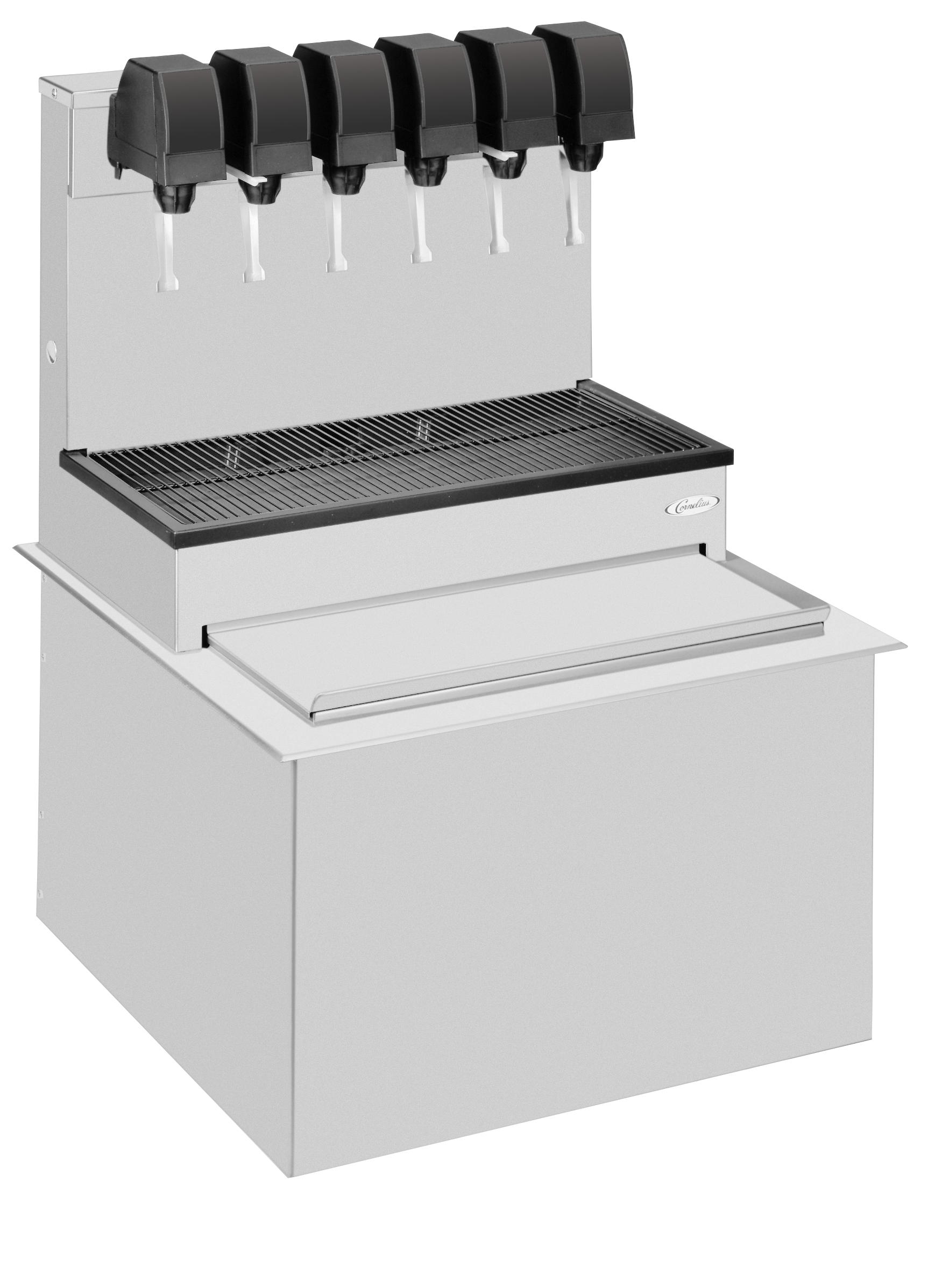

CB2323 High Performance

CB2323 High Performance Drop-In 8 UFB-1™ Sanitary Lever Valves Stainless Steel Tower No Merchandiser Carb. to Non-Carb. Manifold 5-2-1 80 LB Bin

Features

  • Large Ice Capacity - 80 lb bin to meet peak demand
  • Valve - Standard UFB-1™ sanitary lever valves
  • Foamed Insulation - Polyurethane foamed insulation prevents condensation
  • Front Inlet Fitting - Easy to install beverage lines
  • Stainless Steel Construction - Durable and easy to clean
  • Removable Front and Back Panels - Ease of service
  • Extra Wide Drain Pan - Provides extra room for cup staging and is removable for cleaning

Product Downloads

Product Specs

Operator Manual

[ENG]

Installation Manual

[ENG]

631100055

Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF
  • Electricals Requirements120 V / 60 Hz /1 Amp
  • Cup Clearance9.75 in (24.77 cm)
  • Number of Valves8
  • Ice Storage Capacity80 in (36 kg)
  • Valve TypeUFB1 sanitary lever
  • Unit Dimensions (Overall)25 in (63.5 cm) x 23 in (58.42 cm) x 33 in (58.42 cm) (W x D x H)
  • Shipping Weight225 lb (102 kg)
  • Cut Out (Inches)23.25 in (59.06 cm) x 23.27 in (59.11 cm)
  • Beverage Manifolding
  • Drain ConnectionWater 0.375" (9.5mm) barb fitting, Syrup 0.375" (9.5 mm) barb fitting
  • Drain Size0.75 in (19.11mm) flexible hose
