638090501

IMD300

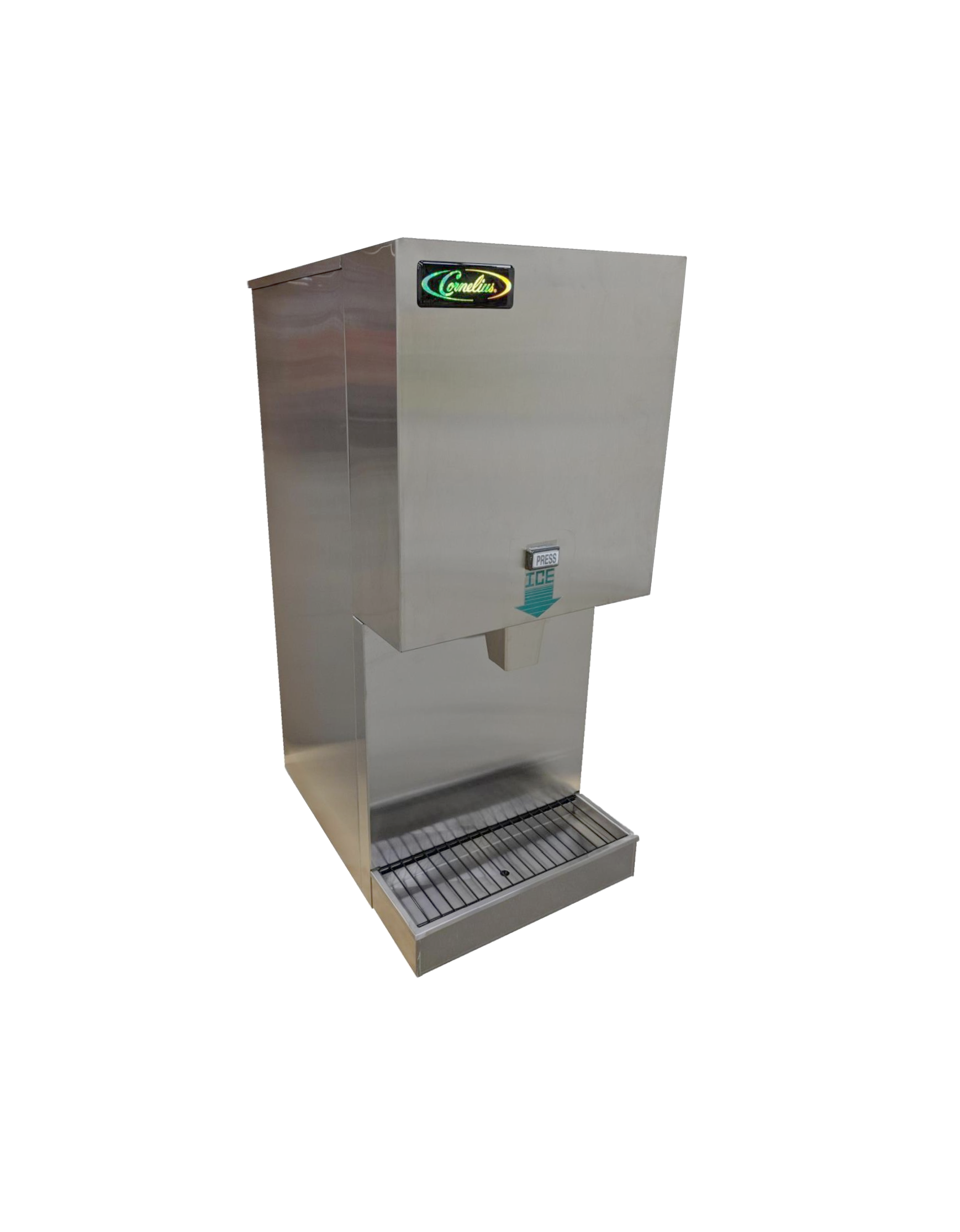

Chunklet IMD300 – 30 Push Button Activated

Features

  • Chewable Ice Dispenser - Produces and dispenses extruded, chewable ice preferred by consumers
  • Stainless Steel Exterior - Durable and corrosion-free
  • High-Yield - Up to 360 lbs (163 kgs) per day ice making production capacity
  • Environmentally Responsible - Energy efficient and uses CFC-free, R404A refrigerant
  • Efficient - Uses 100% of water
  • Air Filters - Convenient & easy-to-clean air filters
Product detail image

Product Downloads

download iconProduct Specs

download iconIllustrated Parts

download iconService Manual

[ENG]

Installation Manuals

download iconInstallation Manual

[ENG]

638090501

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • DescriptionIce maker dispenser IMD300-30 Push Button Activated
  • Dimensions18.62 in (47 cm) x 27.5 in (70 cm) x 36.75 in (93 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz / 1 Phase
  • Water Pressure Required10 to 90 psi
  • Shipping Weight235 lb (107 kg)
  • Compressor/RefrigerantR134A
  • Installations Kits Available and Include"638005237 - Water inlet kit, 638004617 - 4"" adjustable leg Kit"
  • Ambient temperature50°F to 104°F
  • Type of MachineIce Maker Dispenser
  • Ice Production 70/50 lb246 lb (112 kg)
  • Type of CondenserAir Cooled
  • Ice Production 90/70 lb202 lb (92 kg)
  • Ice TypeChunklet
  • Min. Circuit20 Amps
  • Kits638005237 - Water inlet kit, 638004617 - 4"" adjustable leg Kit
