Flavor Overload

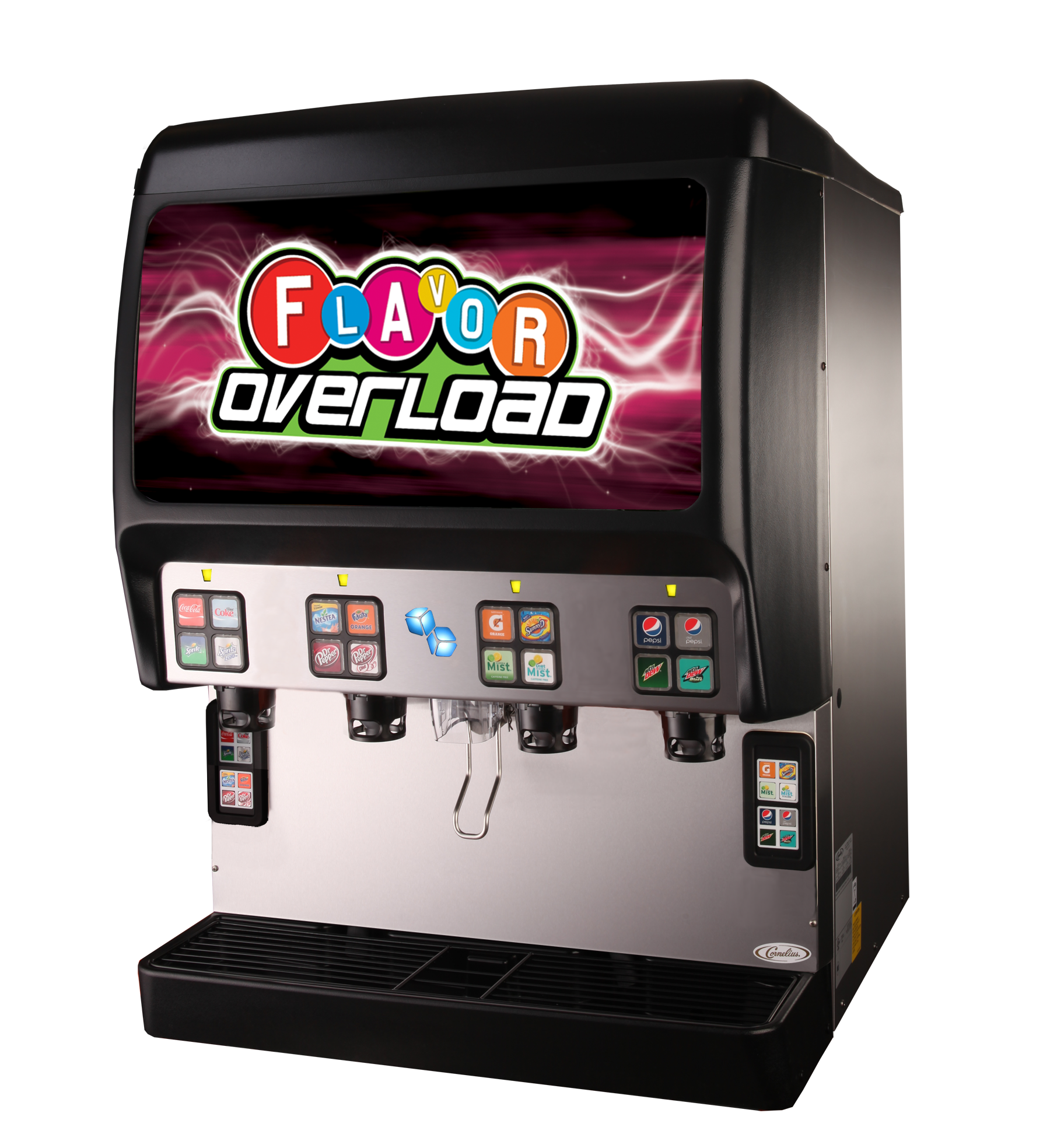

Flavor Overload With 16 MFV Valves Cold Carbonation No Flavor Shots Midnight Black


  • Large Ice Capacity - 225 lb ice storage will meet your peak demand
  • Brand Density - 16 brands in 30 inch foot print
  • Go to Feature J - No flavor shots for this unit
  • ABS Thermoformed Plastic Durabide™ Design - Provides durability and ensures all ice in the hopper is dispensable
  • Gravity Ice Dispensing With Positive Shut-Off - Provides excellent ice targeting
  • TotalFlex™ - Easily changes from carbonated to non-carbonated drinks
  • Modular Design - Allows for easy component access from the front of the unit
  • Readily Accepts Top-Mounted Ice Makers - Can top mount cuber and chunklet ice makers
Product detail image

Product Downloads

download iconProduct Specs

download iconIllustrated Parts

download iconIce Adaptor Kit Matrix

download iconAccessory Sheet

download iconOperator Manual


Installation Manuals

download iconInstallation Manual



Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF, CE
  • Electricals Requirements 115 V +/- 10% (only requires single outlet)
  • Cup Clearance10.125 in (25.718 KG)
  • Number of Valves16 MFV
  • Ice Storage Capacity 255 lb ice bin capacity for cubed & chunklet (compressed) ice
  • Valve Type16 push button brands
  • Unit Dimensions (Overall)30 in (76.2 cm) x 30 in (76.2 cm) x 41 in (104.14 cm) (W x D x H)
  • Shipping Weight365 lb (166 kg)
  • Beverage ManifoldingTotalFlex™
  • Drink Performance and Cooling Capacity2-4 fl.oz. /sec valves
  • Graphic Size Overall(template available)
  • Graphic Size Viewable(template available)
  • Standard FeaturesTimed agitation, beverage key switch and 4" legs
  • Ice Maker Adaptor Kit Available (Yes/No)Yes
  • Back Room Package Required (Yes/No)Yes
  • Counter Weight320 lb (145 kg) (plus ice weight)
  • AMP Draw120V / 60Hz / 9 .3 Amps
  • Water Supply Pressure50-60 psi at pump
  • CO275 psi at carbonator tank
  • Brand Syrup Supply Pump Pressure60 psi/min
  • Drain Size20-25 psi/max
