CNM0330WH0A

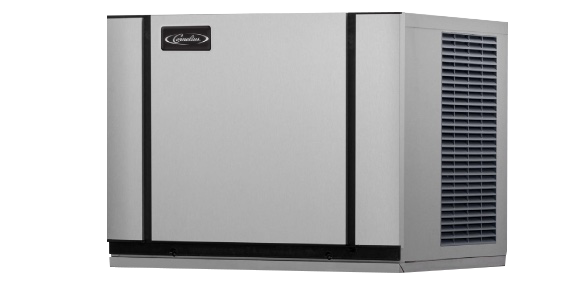

Nordic Elite CNM 0330

Modular Half Cuber 300 LB 30″ Air Cooled 115V/60Hz

Features

  • Environmentally Responsible - 1) Exceeds 2018 Department of Energy regulation. 2) Up to 20% more efficient than previous Nordic models 3) R404A refrigerant
  • Easy Access - Forward facing evaporators on all models
  • Sanitation - Automated cleaning cycle
  • Unique Dual Exhaust - All air-cooled models allow for top or side hot-air discharge for increased installation flexibility

Product Downloads

Product Specs

Illustrated Parts

Installation Manual

[ENG]

Service Manual

[ENG]

CNM0330WH0A

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • DescriptionModular Half Cuber 300# 30" Air Cooled 115V/60Hz
  • Dimensions30.25 in (76.84 cm) x 24.25 in (61.6 cm) x 21.25 in (54 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz / 1 Phase
  • Water Pressure Required20 to 80 psi
  • Shipping Weight145 lb (66 kg)
  • Compressor/RefrigerantR404A
  • Ambient temperature50°F to 100°F
  • Type of MachineModular
  • Ice Production 70/50 lb316 lb (143 kg)
  • Type of CondenserWater Cooled
  • Ice Production 90/70 lb274 lb (124 kg)
  • Ice TypeHalf Cube
  • Min. Circuit10.7
