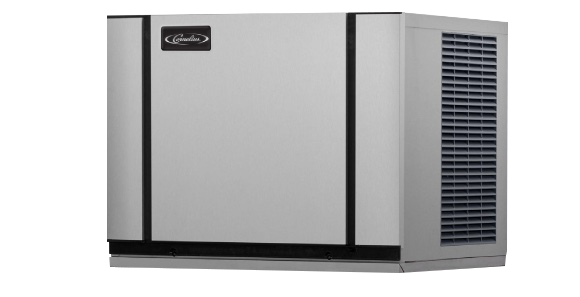

CNM0530WH0A

Nordic™ Elite CNM 0530

Modular Half Cuber 500 LB 30″ Water Cooled 115V/60Hz

Features

  • Environmentally Responsible - Exceeds 2018 Department of Energy regulation. Up to 20% more efficient than previous Nordic models. R404A refrigerant
  • Easy Access - Forward facing evaporators on all models
  • Sanitation - Automated cleaning cycle
  • Unique Dual Exhaust - All air-cooled models allow for top or side hot-air discharge for increased installation flexibility

Product Downloads

Product Specs

Illustrated Parts

Service Manual

[ENG]

CNM0530WH0A

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • Dimensions30.25 in (76.84 cm) x 24.25 in (61.60 cm) x 21.25 in (53.98 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz / 1 Phase
  • Water Pressure Required20 to 60 psi
  • Shipping Weight155 lb (70 kg)
  • Compressor/RefrigerantR404A
  • Ambient temperature50°F to 100°F
  • Type of MachineModular
  • Ice Production 70/50 lb530 lb (240 kg)
  • Type of CondenserWater Cooled
  • Ice Production 90/70 lb470 lb (213 kg)
  • Ice TypeHalf Cube
  • Min. Circuit17.4
