621058753CNB

NitroPro™ Mini

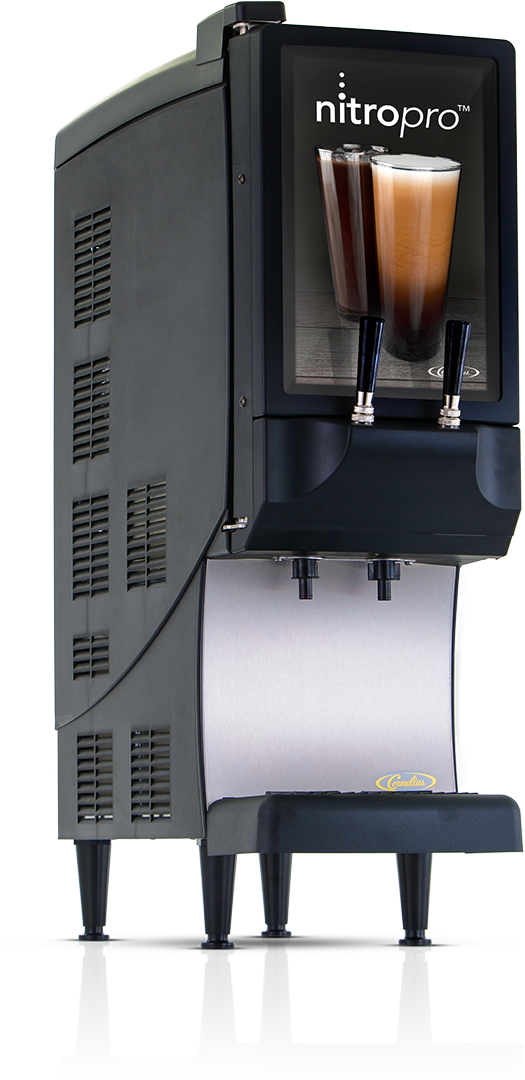

NitroPro™ Mini Countertop Dispenser

Features

Nitro Infusion Technology - Offers a premium product
On-Board Nitro Infusion - No need to source nitrogen or extra equipment
Bag-In-Box Technology - Minimizes product prep time & ensures accuracy
Programmed Post-Mix Ratios - Save time and ensure accuracy
Narrow Footprint - Conserves counter space
Easy to Remove Tap Handles - Replace to align with your brand
LED Illuminated Merchandiser - Easily change graphics without tools
Frost-Free Refrigeration Compartment - Serves consistent cold product
Dual Tap Design - Serves nitro-infused and still product from the same dispenser

Product Downloads

Illustrated Parts

Operator Manual

[ENG]

Service Manual

[ENG]

Installation Manuals

Installation Manual

[ENG]

Videos

621058753CNB

Model Specifications

Product Categorycoffee
Agency ListingsUL, NSF
Nitro InfusionYes
Model621058753CNB
Dimensions29.5 in (74.93 cm) x 17 in (43.18 cm) x 40 in (101.6) (D x W x H)
Electricals RequirementsQTY 1 -115 V/60 Hz/5.0 Amps
Clearance RequiredBack - 4 in (10.16 cm) Top - 12 in (30.48 cm) Sides - 4 in (10.16 cm)
RefrigerationR-134a refrigerant 6.2 fl.oz (175 g) Hermetically Sealed System
Ambient Operating Temperature40ºF to 100ºF (4.4º C to 37.8ºC)
Ice Bank Size6-8 lb
Cabinet Capacity1.5gal BIB - 460cu in. available
Flow Rate1-1.2 fl.oz/per second
Water Connection Type0.375 in (0.95 cm) SAE male
Water Pressure Required35 psi min. 90 psi max.
Bag In Box ConnectorScholle 1910L
Number of Valves2
Shipping Weight140 lb (64 kg)
