621054213

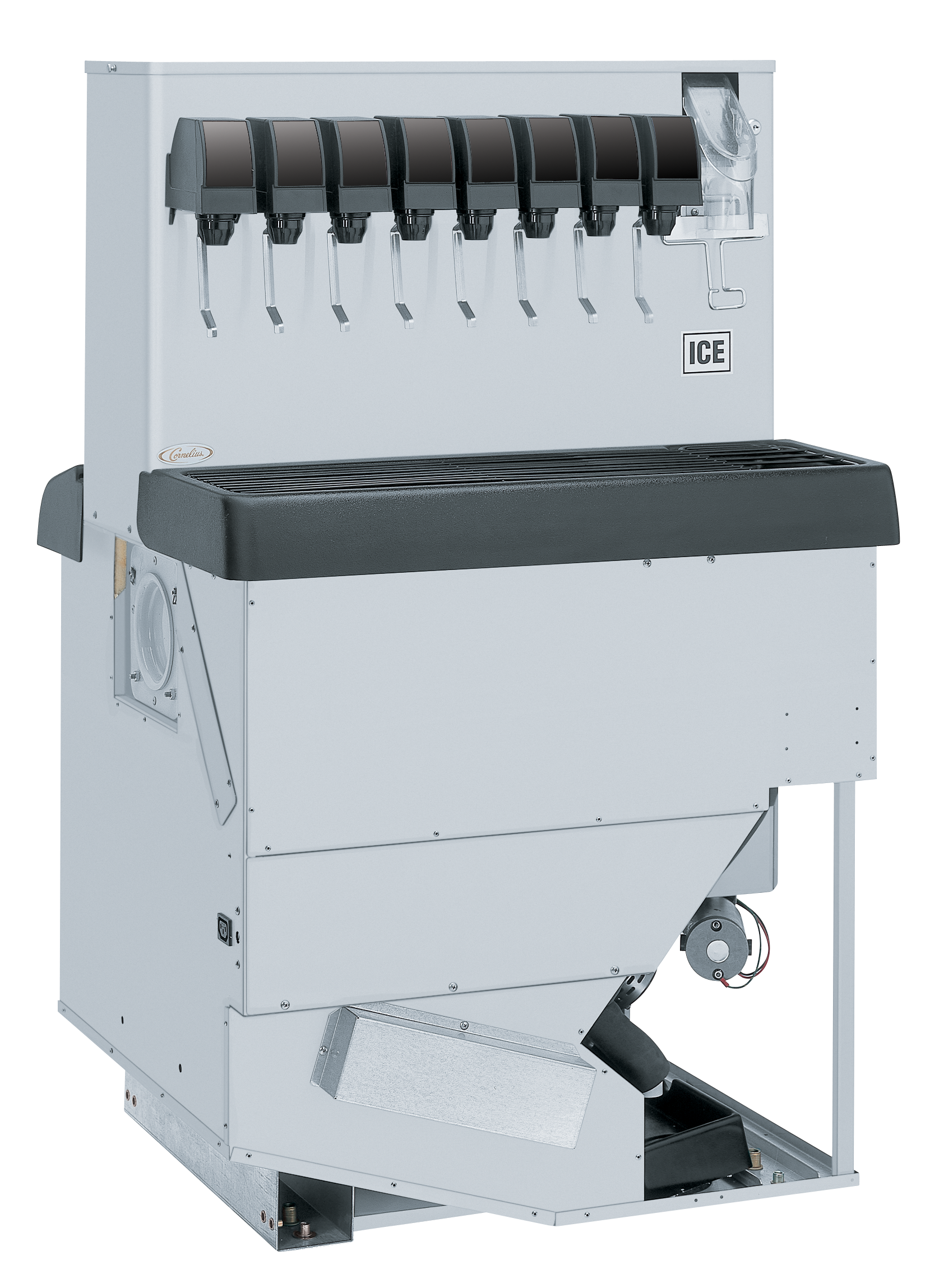

Profile Plus™ 150 BC

PR150BC Plus With 8 UFB-1™ Push-Button Valves Left Side Ice Dispenser

Features

  • Large Ice Capacity - 150 lb bin to meet peak demand
  • Valve Choices - Available with 8 UFB-1™ self serve lever or push button valves
  • Small Footprint - Countertop drop-in for minimum space consumption and maximum visibility
  • ABS Thermoformed Plastic Durabide™ Design - Provides durability and ensures all ice in the hopper is dispensable
  • Waist-Level Ice Fill - Convenient to manual fill from front or rear with right or left hand dispense option
  • Patented Coldplate Design - Optimal Beverage Cooling
  • Ice Dispense Rate - Adjustable ice dispense rate from 2-5 fl.oz./sec
  • Front and Rear Access - Easy to clean and service
  • Improved Mounting of Motor - Eliminates premature seal wear and leaking
  • Separate Upper Drip Tray Drain Line - Prevents spills/overflow underneath unit and cabinet

Product Downloads

Product Specs

Operator Manual

[ENG]

621054213

Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF, CE
  • Electricals Requirements115V/ 60Hz/ 3 Amps
  • Cup Clearance9.75 in (24.77 cm)
  • Number of Valves8
  • Ice Storage Capacity150 lb (68 kg)
  • Valve TypeUFB-1™ Push Button
  • Unit Dimensions (Overall)31.875 in (80.96 cm) x 27.69 in ( 70.32 cm) x 50.25 in (127.63 cm) (W x D x H)
  • Cut Out (Inches)30 in (76.2 cm) W X 26.25 in (66.68 cm) D
  • Beverage Manifolding3-1-1-3
  • Drink Performance and Cooling Capacity4-12 fl.oz. drinks per minute at 75 degrees will result in a drink below 40 degree
  • Drain Connection1- lower drip tray 3/4" OVC pipe/fittings 1-Upper drip tray 3/4" PVC pipe fittings
  • Standard FeaturesBeverage Key Switch,Automatic Timed Agitation
  • Net WeightEmpty 285 lb (129 kg) Full 435 lb (197 kg)
  • Counter Weight435 lb (197 kg)
  • AMP Draw3 amp
  • Ice Dispenser Locationleft
  • Counter Max. Weight Support435 lb (197 kg)
