Quest Elite 2000

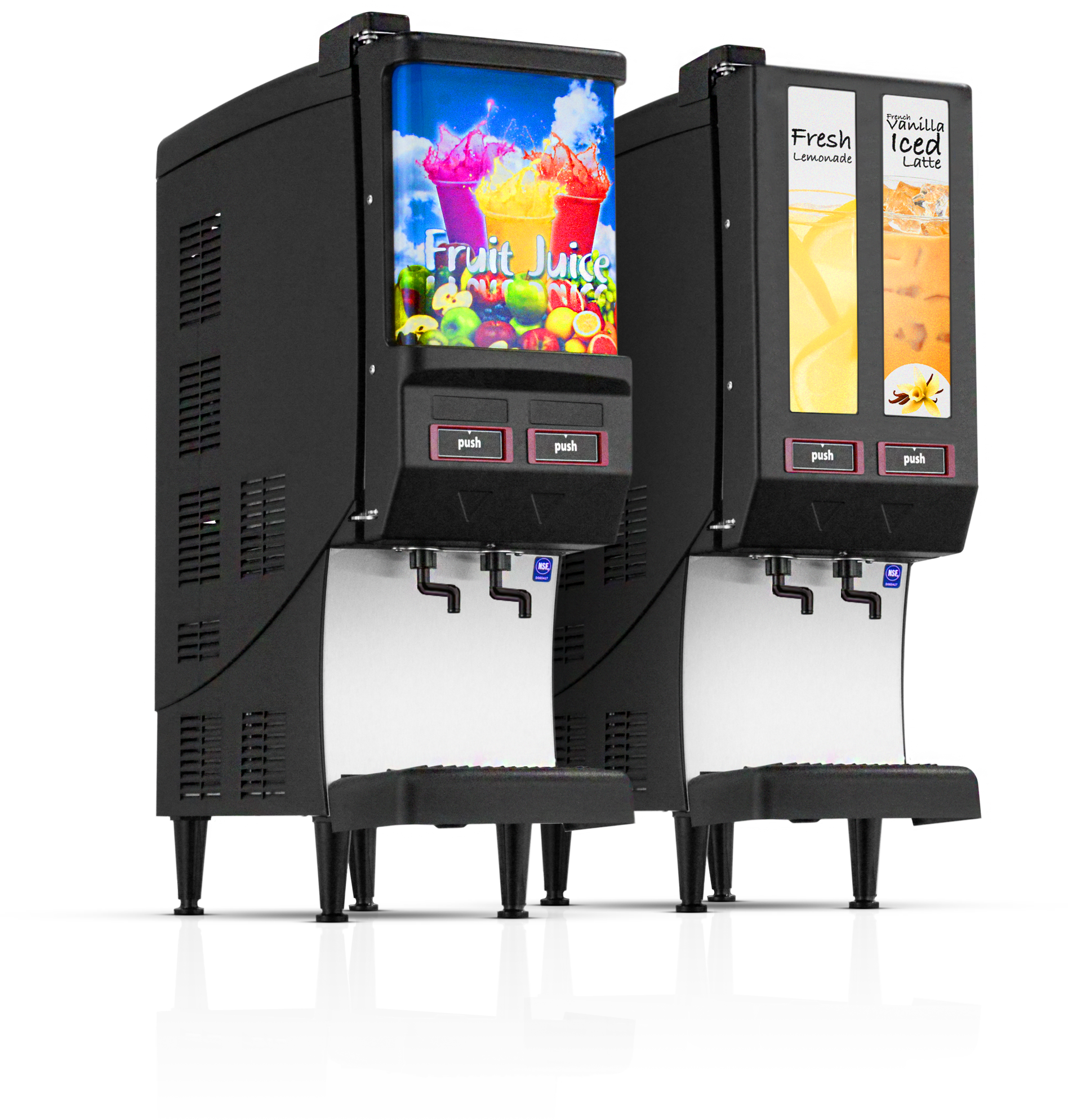

DISCONTINUED- Quest Elite 2000 2-Flavor Post-Mix Dispenser

Features

  • Wide Product/Ratio Capability - Accommodates a variety of post-mix products including juices and lemonades with pulp, teas, and cold coffees
  • Large Refrigerated Cabinet - Ensures that you can safely and reliably serve the largest crowds during peak periods
  • Patented Mixing System - Our patented mixing system perfectly blends concentrate and water, providing consistent quality drinks without stratification, slugging, or dripping
  • Frost-Free Chill Compartment - Safely accommodates frozen, ambient or aseptic concentrate containers or BIB’s
  • LED Illuminated Graphics - Attract attention and promote a variety of drink selections
  • Eye-Catching Merchandiser Options - Eye-catching graphics enhance selling power
  • Dispensing Options - Improve user experience and operation type with the choice of portion control, push to dispense or touchless
  • ‘Sold Out’ Indicator - Alerts operator to product-out condition and maximizes sales
  • Modular Component Design - Ease of component access and replacement speeds service and maximizes up-time
Product detail image

Product Downloads

download iconProduct Specs

download iconSelling Guide

download iconManual IPL

[ENG] [FRA] [SPAN] [ARA]

Installation Manuals

Videos

video Quest Elite Touchless

Model Specifications

  • Product Categorynon-carbonated
  • Concentrate Storage2 - 3.5L bottles
  • Operational Temperature Range40ºF to 100ºF (4.4º C to 37.8ºC)
  • Interior Cabinet Dimensions7.5”W x 9.5”D x 9.0”H (19.5 cm x 24.1 cm x 22.9 cm)
  • Recommended ClearanceTop: 12.0” (30.5 cm) Back: 4.0” (10.2 cm) Sides: 4.0” (10.2 cm)
  • Post-Mix Ratio3:1, 4:1, 5:1, 6:1, 7:1, 8:1
  • Merchandiser Graphic SizeSingle Panel: 11.7”W x 11.1”H (29.7 cm x 28.1 cm) Multi-Panel: 2.9”W x 13.0”H (7.4 cm x 33.9 cm)
  • Interior Cabinet Dimensions7.5”W x 9.5”D x 9.0”H (19.5 cm x 24.1 cm x 22.9 cm)
  • Agency ListingsUL, NSF, CE
  • Dimensions10.6”W x 25.0”D x 34.0”H (26.9 cm x 63.5 cm x 86.4 cm)
  • Electricals Requirements115V/60Hz, 230V/50Hz
  • RefrigerationR290 refrigerant (52g) hermetically sealed
  • Ice Bank Size6-8 lbs.
  • Flow RateBeverage pour rate 1-2.2oz/sec
  • Water Connection TypeOptimum Pressure: 50psi (3.4 bar) flowing 3oz/sec Minimum Static Pressure: 30psi (2.1 bar) Maximum Static Pressure: 60psi (4.1 bar)
  • Shipping WeightShipping: 120 lbs (54.4 kg)
  • Net WeightDry: 104 lbs. (47.2 kg) Operating: 136 lbs. (61.7 kg)
