Quest Elite 4000

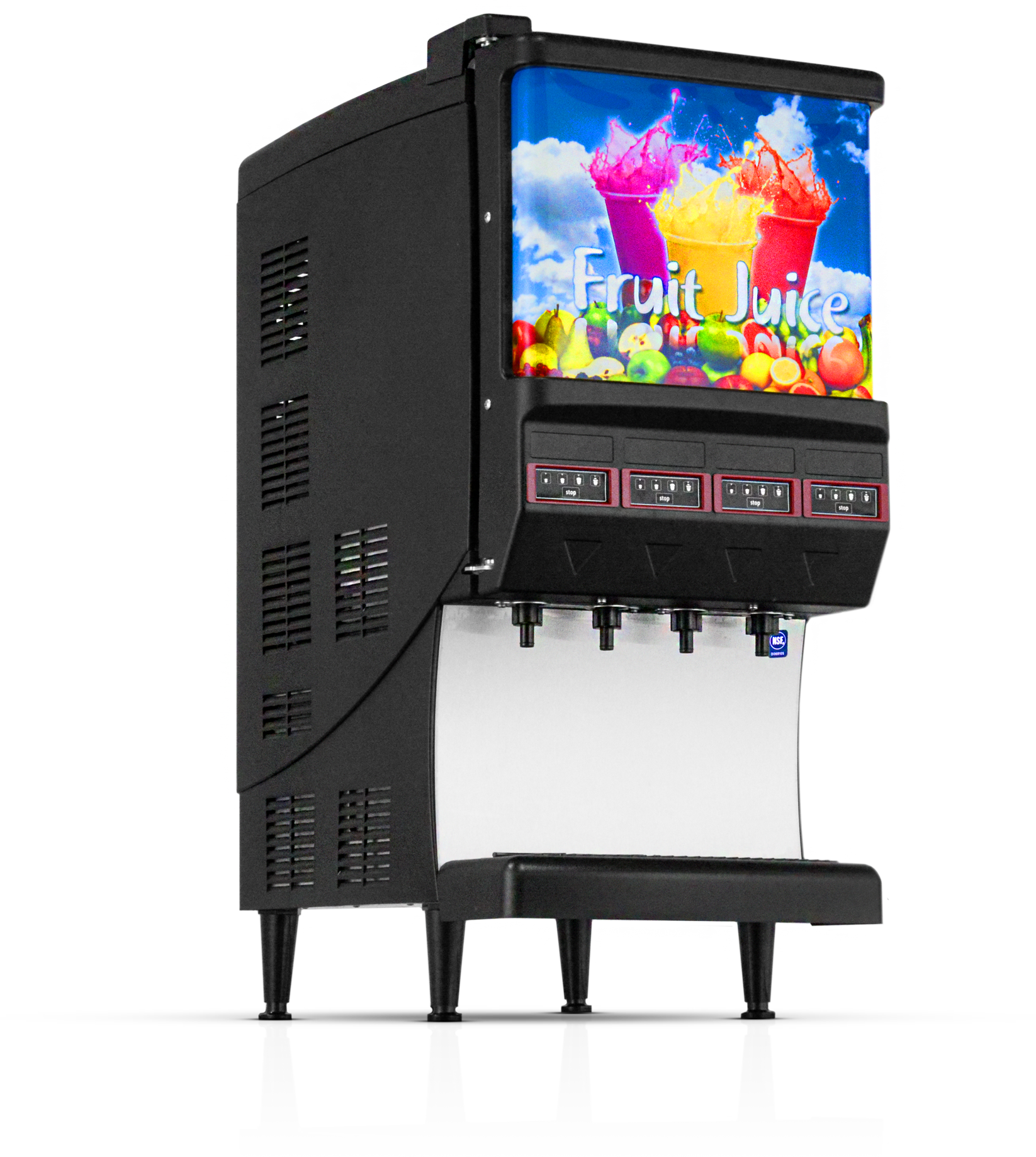

Quest Elite R290, 4 Flavor, Illuminated, Single-Panel Merchandiser, Push Dispense, Sold-Out,115V


  • Wide Product/Ratio Capability - Accommodates a variety of post-mix products including juices and lemonades with pulp, teas, and cold coffees
  • Large Refrigerated Cabinet - Ensures that you can safely and reliably serve the largest crowds during peak periods
  • Patented Mixing System - Our patented mixing system perfectly blends concentrate and water, providing consistent quality drinks without stratification, slugging, or dripping
  • Frost-Free Chill Compartment - Safely accommodates frozen, ambient or aseptic concentrate containers or BIB’s
  • LED Illuminated Graphics - Attract attention and promote a variety of drink selections
  • Eye-Catching Merchandiser Options - Eye-catching graphics enhance selling power
  • Dispensing Options - Improve user experience and operation type with the choice of portion control, push to dispense or touchless
  • 'Sold Out' Indicator - Alerts operator to product out condition and maximizes sales
  • Modular Component Design - Ease of component access and replacement speeds service and maximizes up-time
Product detail image

Product Downloads

download iconProduct Specs

download iconSelling Guide

download iconManual IPL


Installation Manuals



Model Specifications

  • Product Categorynon-carbonated
  • Concentrate Storage4 - 3.5L bottles
  • Operational Temperature Range40ºF to 100ºF (4.4º C to 37.8ºC)
  • Interior Cabinet Dimensions12.0”W x 9.5”D x 9.0”H (30.5 cm 24.1 cm x 22.9 cm)
  • Recommended ClearanceTop: 12.0” (30.5 cm) Back: 4.0” (10.2 cm) and Sides: 4.0” (10.2 cm)
  • Post-Mix Ratio3:1, 4:1, 5:1, 6:1, 7:1, 8:1
  • Merchandiser Graphic SizeSingle Panel: 16.5”W x 11.1”H (41.9 cm x 28.1 cm)
  • Interior Cabinet Dimensions12.0”W x 9.5”D x 9.0”H (30.5 cm 24.1 cm x 22.9 cm)
  • Agency ListingsUL, NSF
  • Dimensions34.0 in (86.4 cm) x 15.2 in (38.6 cm) x 24.9 in (63.2 cm) (H x W x D)
  • Electricals Requirements115V / 60Hz
  • RefrigerationR290 refrigerant (56g) hermetically sealed
  • Ice Bank Size14-16lb
  • Flow RateAdjustable water flow rate from 1-2.2 fl.oz/sec
  • Water Connection Type0.375” (0.95 cm) SAE male flare SAE fitting on dispenser
  • Cup Clearance7 in (17.78 cm)
  • Number of Valves4
  • Shipping Weight155 lbs (70.3 kg)
  • Drink Performance and Cooling CapacityThree 12 oz drinks/min (355 mL) up to 100 drinks @ 75⁰F (24⁰C) ambient, 75⁰F (24⁰C) incoming water, and 41⁰F (5⁰C) concentrate w/o exceeding 40⁰F (4.4⁰C)
  • Net WeightUnit: 120 lb (54.4 kg) Counter Weight: 185 lb (83.9 kg)
  • Dispenser FinishBlack plastic with stainless steel front panel
  • Sold-Out IndicatorYes
  • Beverage CapacityFour 0.9 gal (3.5 L) bottles
  • Dispense TypePush Button
  • Water Supply RequirementsOptimum: 50 psi (3.4 bar) @ 3 fl.oz/sec flow rate Max Pressure: 60 psi (4.1 bar)* Min Pressure: 30 psi (2.1 bar) *For water pressure exceeding the optimum supply specification, flow control set at 50 psi is recommended
