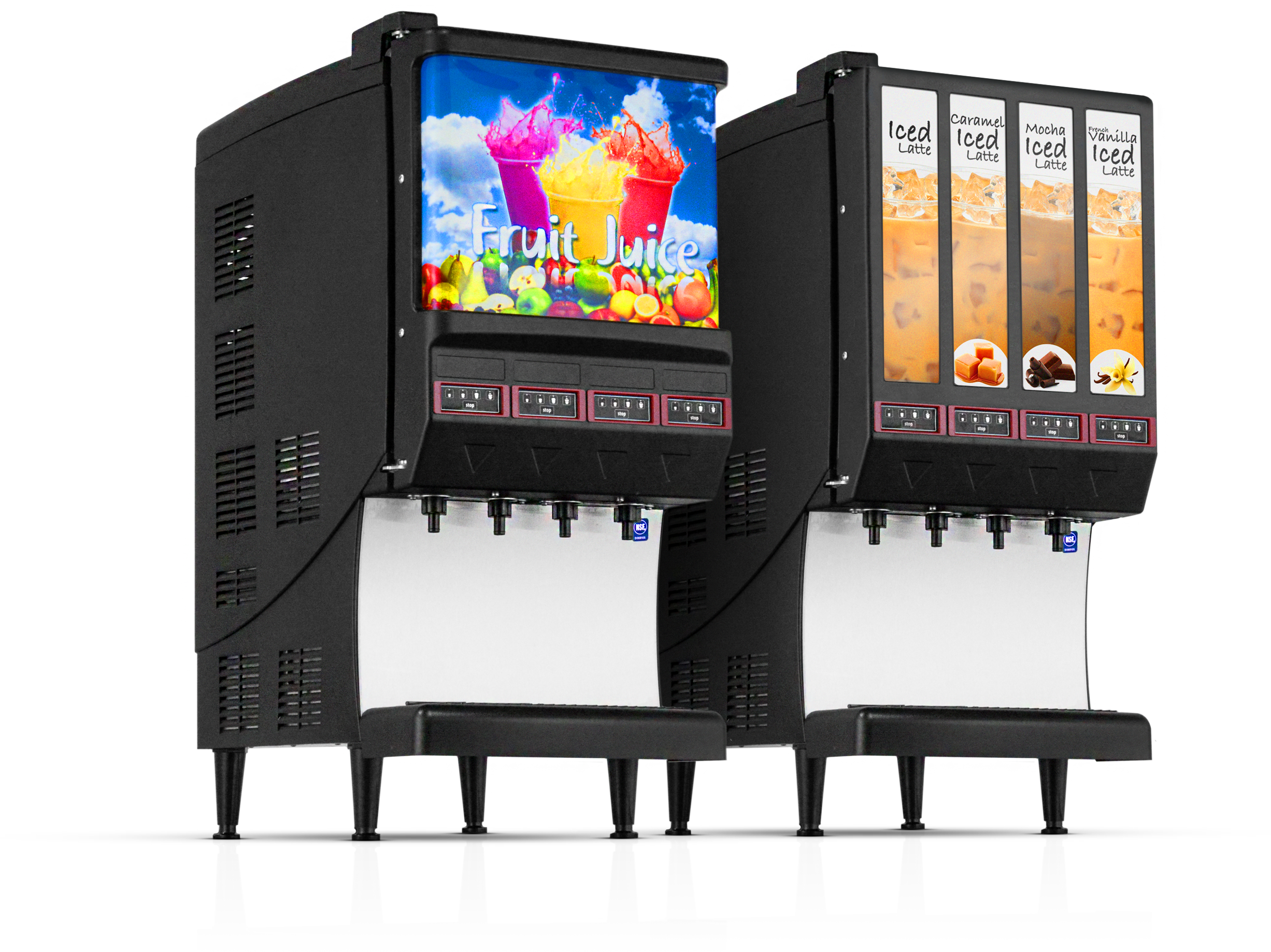

DISCONTINUED Quest Elite 4000 4-Flavor Post-Mix Dispenser

Wide Product/Ratio Capability - Accommodates a variety of post-mix products including juices and lemonades with pulp, teas, and cold coffees
Patented Mixing System - Our patented mixing system perfectly blends concentrate and water, providing consistent quality drinks without stratification, slugging, or dripping
Frost-Free Chill Compartment - Safely accommodates frozen, ambient or aseptic concentrate containers or BIB’s
Large Refrigerated Cabinet - Ensures that you can safely and reliably serve the largest crowds during peak periods
Optional Touchless Dispense Kit - Hygienic, touch-free dispense conversion kit available
LED Illuminated Graphics - Attract attention and promote a variety of drink selections
Flexible Merchandiser - The option of single-panel or multi-panel merchandiser— A variety of graphics included
‘Sold Out’ Indicator - Alerts operator to product-out condition and maximizes sales
Easy to Service - Modular components and accessible cabinet design for ease of serviceability
Narrow Footprint - Conserves counter space
Innovative Magnetic Latch - Ensures precise alignment, preventing doors from being left ajar and maintaining consistent temperatures
Enhanced Door Gasket - Engineered for superior sealing to lock in cool air and block out heat, ensuring optimal temperature control

[ENG] [FRA] [SPAN]

download icon Door Gasket & Magnetic Latch Instructions

[ENG]

download icon Manual IPL

[ENG] [FRA] [SPAN]

Model Specifications

Product Categorynon-carbonated
Concentrate Storage4 - 3.5L bottles
Operational Temperature Range40ºF to 100ºF (4.4º C to 37.8ºC)
InstallationCountertop or Stand (available as an accessory)
Interior Cabinet Dimensions12.0”W x 9.5”D x 9.0”H (30.5 cm 24.1 cm x 22.9 cm)
Post-Mix Ratio3:1, 4:1, 5:1, 6:1, 7:1, 8:1
Merchandiser Graphic SizeSingle Panel: 16.5”W x 11.1”H (41.9 cm x 28.1 cm) Multi-Panel: 2.9”W x 13.0”H (7.4 cm x 33.9 cm)
Interior Cabinet Dimensions12.0”W x 9.5”D x 9.0”H (30.5 cm 24.1 cm x 22.9 cm)
Agency ListingsUL, NSF, CE
Dimensions15.2”W x 24.9”D x 34”H (38.6 cm x 63.2 cm x 86.4 cm)
Electricals Requirements115V/60Hz, 230V/50Hz
RefrigerationR290 refrigerant (56g) hermetically sealed
Ice Bank Size14-16 lbs.
Flow RateBeverage pour rate 1-2.2oz/sec
Water Connection Type3/8” SAE male flare fitting on dispenser
Shipping WeightShipping: 120 lbs (54.4 kg)
Net WeightDry: 120 lbs. (54.4 kg) Operating: 185 lbs. (83.9 kg)
Water ButtonNo
Water Supply RequirementsOptimum Pressure: 50psi (3.4 bar) flowing 3oz/sec Minimum Static Pressure: 30psi (2.1 bar) Maximum Static Pressure: 60psi (4.1 bar)
