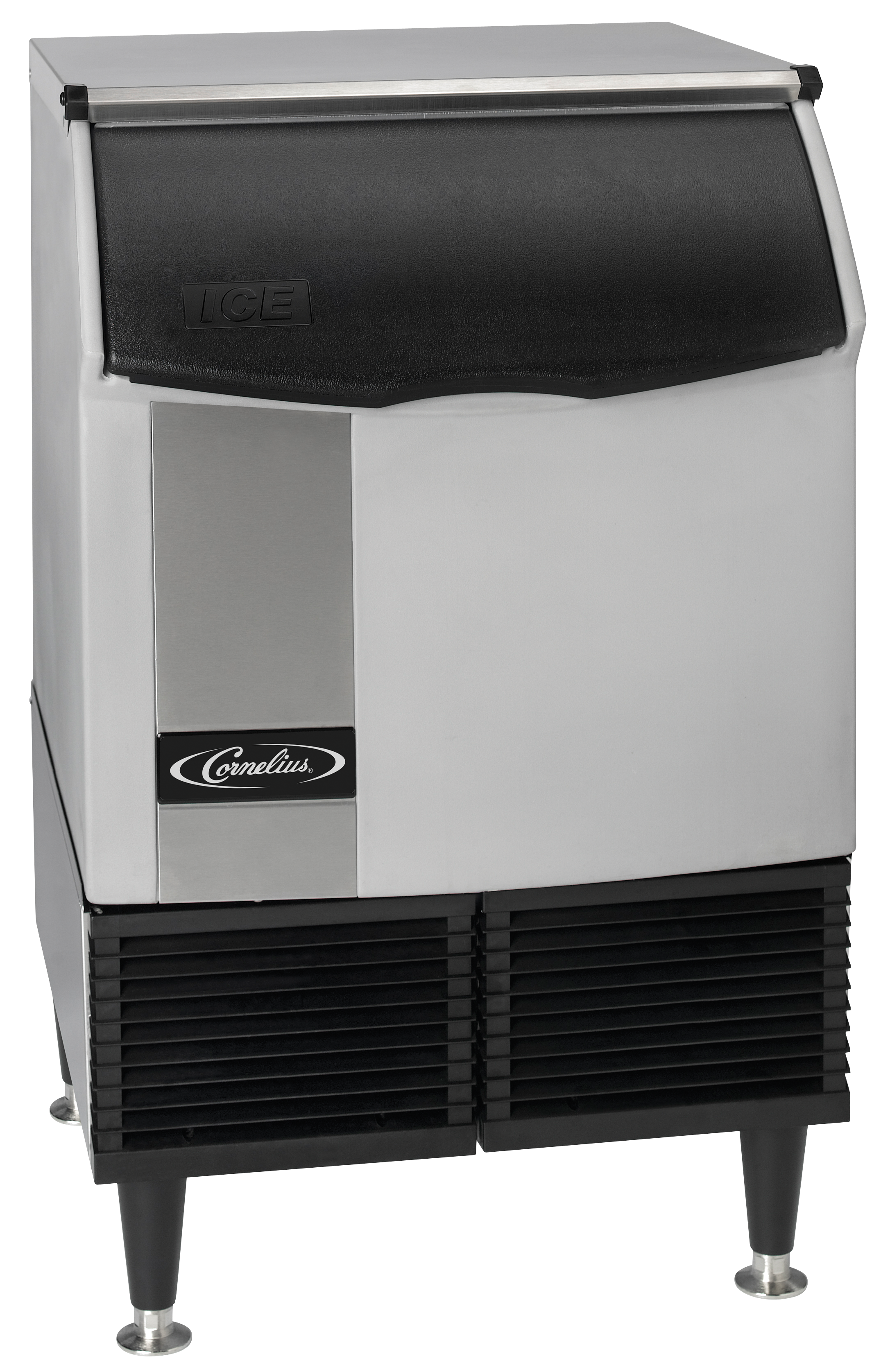

CCU0150AF13

Nordic CCU150

Self Contained Full Cuber 0150 air cooled

Features

  • Small Footprint - Ultra low-profile - only 39" (991 mm) tall and 34" (605 mm) wide
  • High-Yield - Produces up to 174 lbs. (79 Kgs.) of ice/day
  • Storage - 100 lb (45 kg) built-in application storage
  • Antimicrobial - Built-in Agion Antimicrobial product protection effective against mold, mildew, and fungus
  • Durable - Rotomolded exterior cladding
  • Customizable - Adjustable leg height
  • Easy Access - Large bin door opening

Product Downloads

Product Specs

Illustrated Parts

Installation Manual

[ENG]

Service Manual

[ENG]

CCU0150AF13

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • DescriptionSelf contained Full Cuber 0150 air cooled
  • Dimensions24 in (61 cm) x 24 in (61 cm) x 39 in (99 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz / 1 Phase
  • Water Pressure Required20 to 60 psi
  • Shipping Weight160 lb (73 kg)
  • Compressor/RefrigerantR404A
  • Ambient temperature50°F to 100°F
  • Type of MachineUndercounter
  • Ice Production 70/50 lb174 lb (79 kg)
  • Type of CondenserAir Cooled
  • Ice Production 90/70 lb112 lb (51 kg)
  • Ice TypeFull Cube
  • Min. Circuit9.7
