CCU0220AH12

Nordic CCU0220

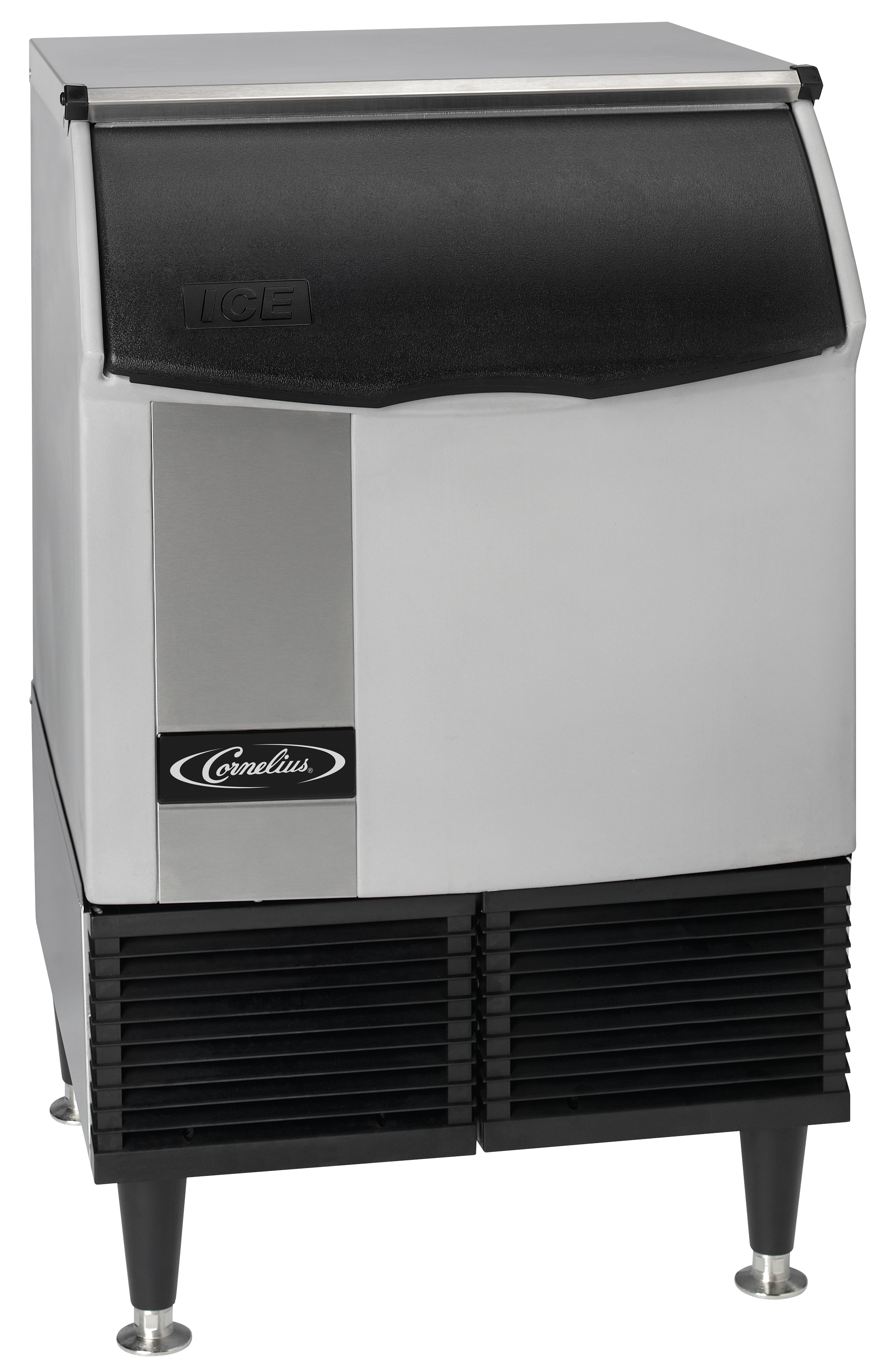

Nordic Self Contained Half Cuber 200 LB air cooled 115V/60Hz

Features

  • Small Footprint - Ultra low-profile - only 39" (991 mm) tall and 34" (605 mm) wide
  • High-Yield - Produces up to 251 lbs. (114 Kgs.) of ice/day
  • Storage - 100 lb (45 Kg) built-in application storage
  • Antimicrobial - Built-in Agion Antimicrobial product protection effective against mold, mildew, and fungus
  • Durable - Rotomolded exterior cladding
  • Customizable - Adjustable leg height
  • Easy Access - Large bin door opening
Product detail image

Product Downloads

download iconProduct Specs

download iconIllustrated Parts

download iconService Manual

[ENG]

Installation Manuals

download iconInstallation Manual

[ENG]

CCU0220AH12

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • DescriptionSelf contained Half Cuber 200# air cooled 115V/60Hz
  • Dimensions24 in (61 cm) x 24 in (61 cm) x 39 in (99 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz/ 1 Phase
  • Water Pressure Required20 to 60 psi
  • Shipping Weight160 lb (73 kg)
  • Compressor/RefrigerantR404A
  • Ambient temperature50°F to 110°F
  • Type of MachineUndercounter
  • Ice Production 70/50 lb238 lb (108 kg)
  • Type of CondenserAir Cooled
  • Ice Production 90/70 lb175 lb (79 kg)
  • Ice TypeHalf Cube
  • Min. Circuit11.9
