631600117

WCC2000

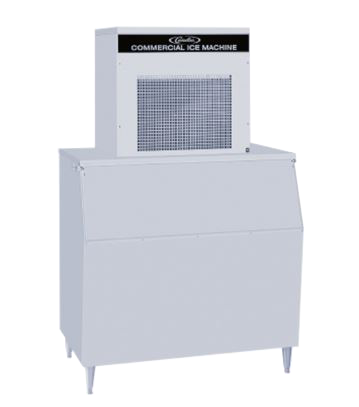

Chunklet WCC2000 Modular Continuous – Remote

Features

  • High-Yield - Makes up to 1735 lbs (787 kgs) of high quality "chewable" chunklet ice per day
  • Stainless Steel Exterior - Durable and corrosion-free
  • Environmentally Responsible - Energy efficient and uses CFC-free, R404A refrigerant
  • Efficient - Uses 100% of water
  • Remote Condenser - Model removes heat from building, saving money on utility costs

Product Downloads

Product Specs

Illustrated Parts

Installation Manual

[ENG]

Service Manual

[ENG]

631600117

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • Description2000 Series Modular, continuous chunklet WCC2001R
  • Dimensions30 in (76.2 cm) x 24 in (61 cm) x 28 in (71 cm) (W x D x H)
  • Electricals Requirements208-230 V / 60 Hz /1 Phase
  • Ambient Operating Temperature50°F to 104°F
  • Water Pressure Required10 to 90 psi
  • Shipping Weight342 lb (155 kg)
  • Compressor/RefrigerantR404A
  • Installations Kits Available and Include630900271 - 55' Line ste with R404a pre-charged
  • Ambient temperature50°F to 104°F
  • Type of MachineModular
  • Ice Production 70/50 lb1,735 lb (787 kg)
  • Type of CondenserRemote
  • Ice Production 90/70 lb1,400 lb (635 kg)
  • Ice TypeNugget
  • Min. Circuit25 Amps
  • Kits630900271 - 55' Line ste with R404a pre-charged
