Flavor Fusion

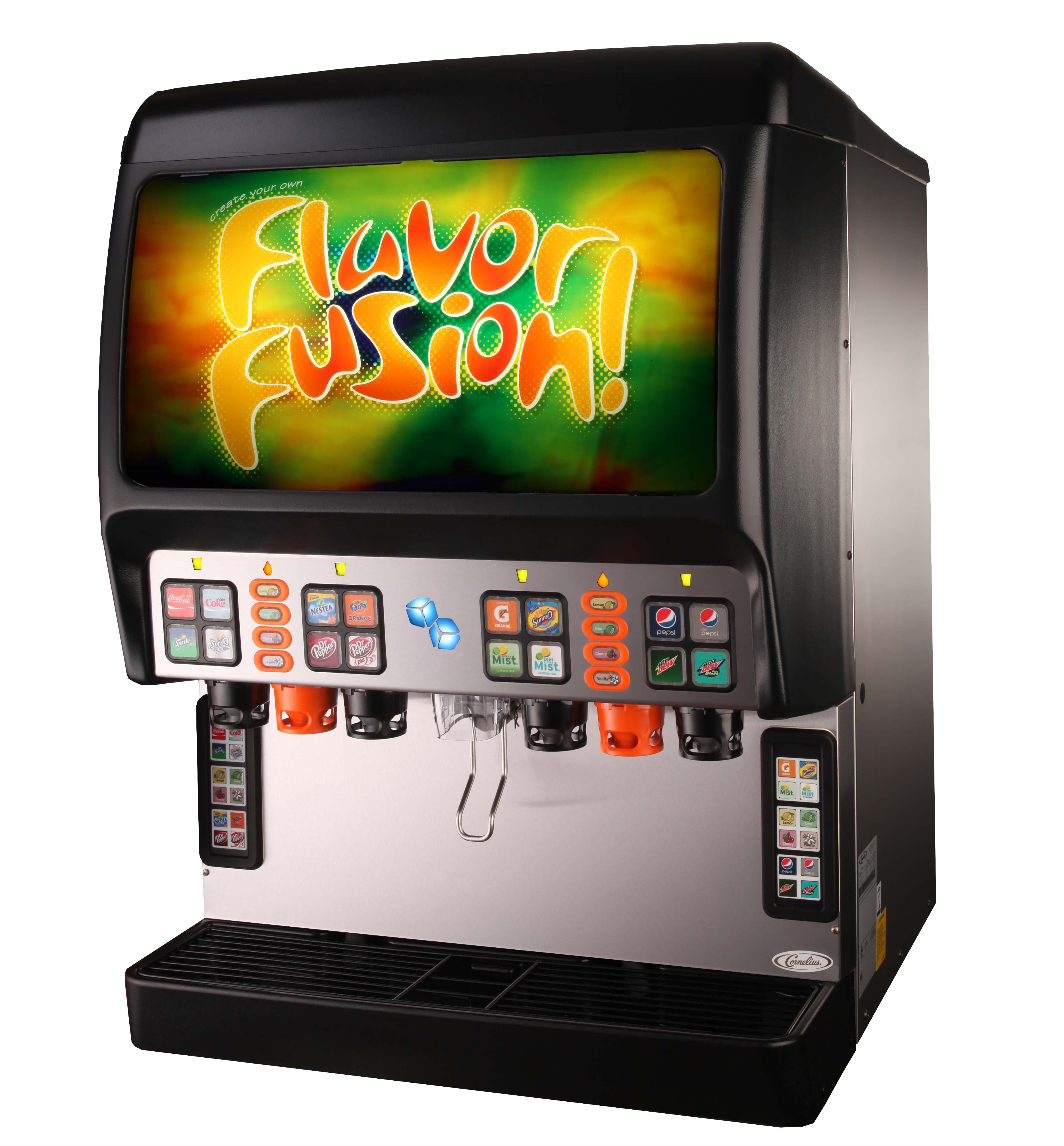

FlavorFusion™ With 16 MFV Valves Cold Carbonation And 8 Flavor Shot Buttons, Meets ADA, With Drip Tray


  • Large Ice Capacity - 255 lb ice storage will meet your peak demand
  • Brand Density - 16 brands and 4 flavor shots in 30 inch foot print
  • Flavor Shot Nozzles - Dedicated Flavor Shot nozzles allow customers to create a unique drink experience
  • Flavor Shot Adjustabilty - Flavor shot dispense times and flow rate are easy to adjust to meet store owner and customer needs
  • No Flavor Carry Over - Our unique valve design eliminates flavor carry over for brands and flavor shots
  • Total Flexibility   - Can easily change from carbonated to non-carbonated drinks for each brand
  • Built-In Cold Carbonation - Delivers consistent drink quality
  • Readily Accepts Top-Mounted Ice Makers - Can top mount cuber and chunklet ice makers
  • Easy Motor Removal - Ease of service; to replace motor ice does not have to be removed from hopper or removal of top-mounted ice maker
  • Large Drip Tray Capacity - Holds overflow of ice from ice dispense
Product detail image

Product Downloads

download iconProduct Specs

download iconIllustrated Parts

download iconIce Adaptor Kit Matrix

download iconAccessory Sheet

download iconOperator Manual


Installation Manuals

download iconInstallation Manual




Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF, CE
  • Electricals Requirements 115 V +/- 10% (only requires single outlet)
  • Cup Clearance10 in (25.4 cm)
  • Number of Valves16 MFV 8 Flavor shots
  • Ice Storage Capacity 255 lb ice bin capacity for cubed & chunklet (compressed) ice
  • Valve Type16 push button brands
  • Unit Dimensions (Overall)30 in (76.2 cm) x 30 in (76.2 cm) x 41 in (104.14 cm) (W x D x H)
  • Shipping Weight365 lb (166 kg)
  • Beverage ManifoldingTotalFlex™
  • Drink Performance and Cooling Capacity2-4 fl.oz./sec valves
  • Graphic Size Overall(template available)
  • Standard FeaturesTimed agitation, beverage key switch and 4" legs
  • Counter Weight320 lb (plus ice weight)
  • AMP Draw120V / 60Hz / 9.3 Amps
  • Water Supply Pressure50-60 psi at pump
  • CO275 psi at carbonator tank
  • Brand Syrup Supply Pump Pressure60 psi/min
  • Drain Size20-25 psi/max
