638090400

IMD600

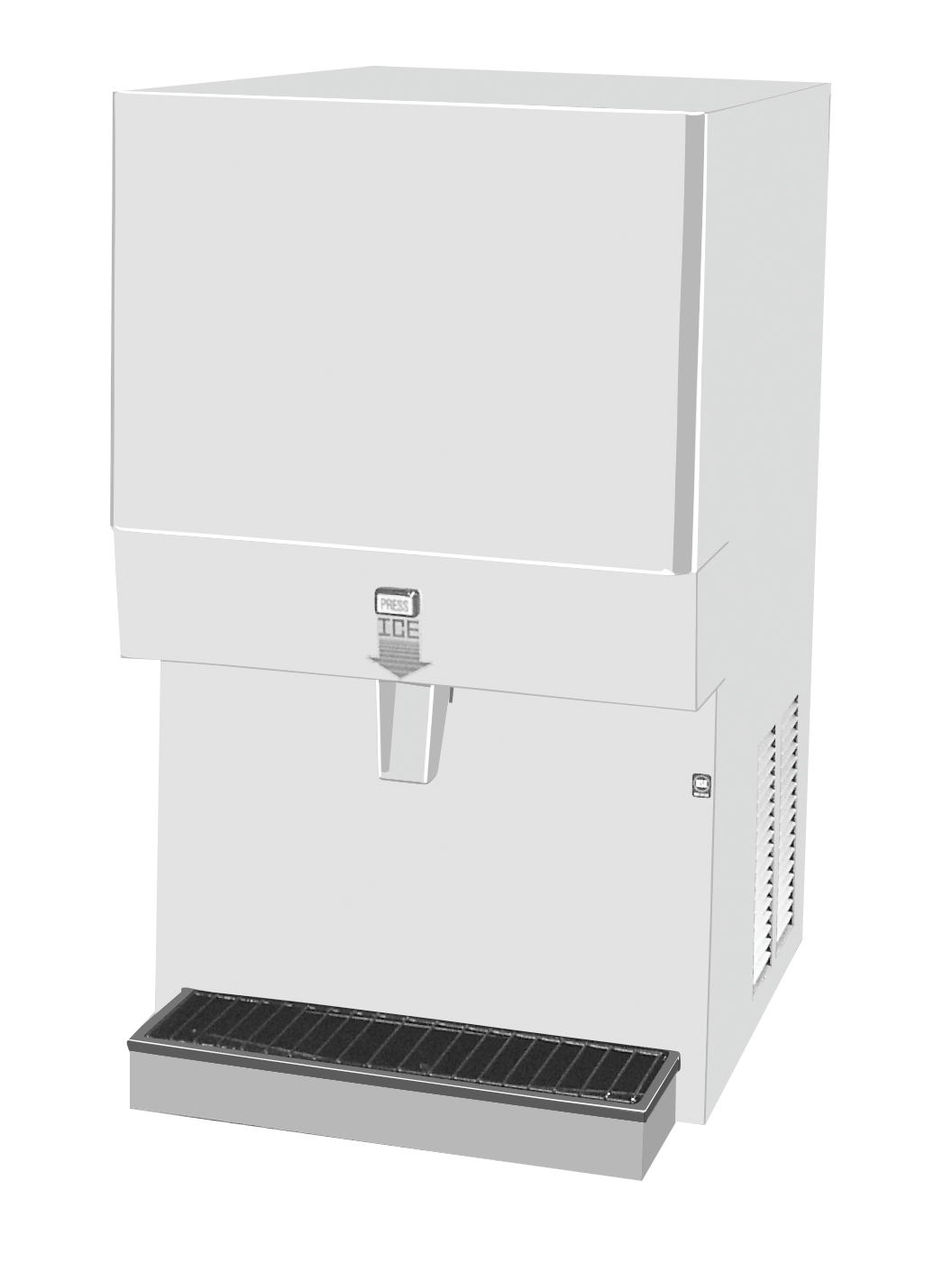

Ice Maker Dispenser IMD600-30 LA

Features

  • Chewable Ice Dispenser - Produces and dispenses extruded, chewable ice preferred by consumers
  • Stainless Steel Exterior - Durable and corrosion-free
  • High-Yield - Up to 618 lbs (280 kgs) per day ice making production capacity
  • Environmentally Responsible - Energy efficient and uses CFC-free, R404A refrigerant
  • Efficient - Uses 100% of water
  • Air Filters - Convenient & easy-to-clean air filters
  • Options - Standard ice and optional water dispensing
  • Air Filter - Removable, easy-to-clean air filters

Product Downloads

Product Specs

Illustrated Parts

Installation Manual

[ENG]

Service Manual

[ENG]

638090400

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • DescriptionIce maker dispenser IMD600-30 LA
  • Dimensions18.6 in (47 cm) x 28 in (71 cm) x 36 in (91 cm) (W x D x H)
  • Electricals Requirements115 V / 60 Hz / 1 Phase
  • Ambient Operating Temperature50°F to 104°F
  • Water Pressure Required10 to 90 psi
  • Shipping Weight137 lb (62 kg)
  • Compressor/RefrigerantR404A
  • Installations Kits Available and Include"638005237 - Water inlet kit, 638004617 - 4"" adjustable leg Kit 638031243 - Floor stand IMD 300-30 & 600-30"
  • Ambient temperature50°F to 104°F
  • Type of MachineIce Maker Dispenser
  • Ice Production 70/50 lb618 lb (280 kg)
  • Type of CondenserAir Cooled
  • Ice Production 90/70 lb493 lb (224 kg)
  • Ice TypeChunklet
  • Min. Circuit20 Amps
  • Kits638005237 - Water inlet kit, 638004617 - 4"" adjustable leg Kit 638031243 - Floor stand IMD 300-30 & 600-30
