621065275

IDC215

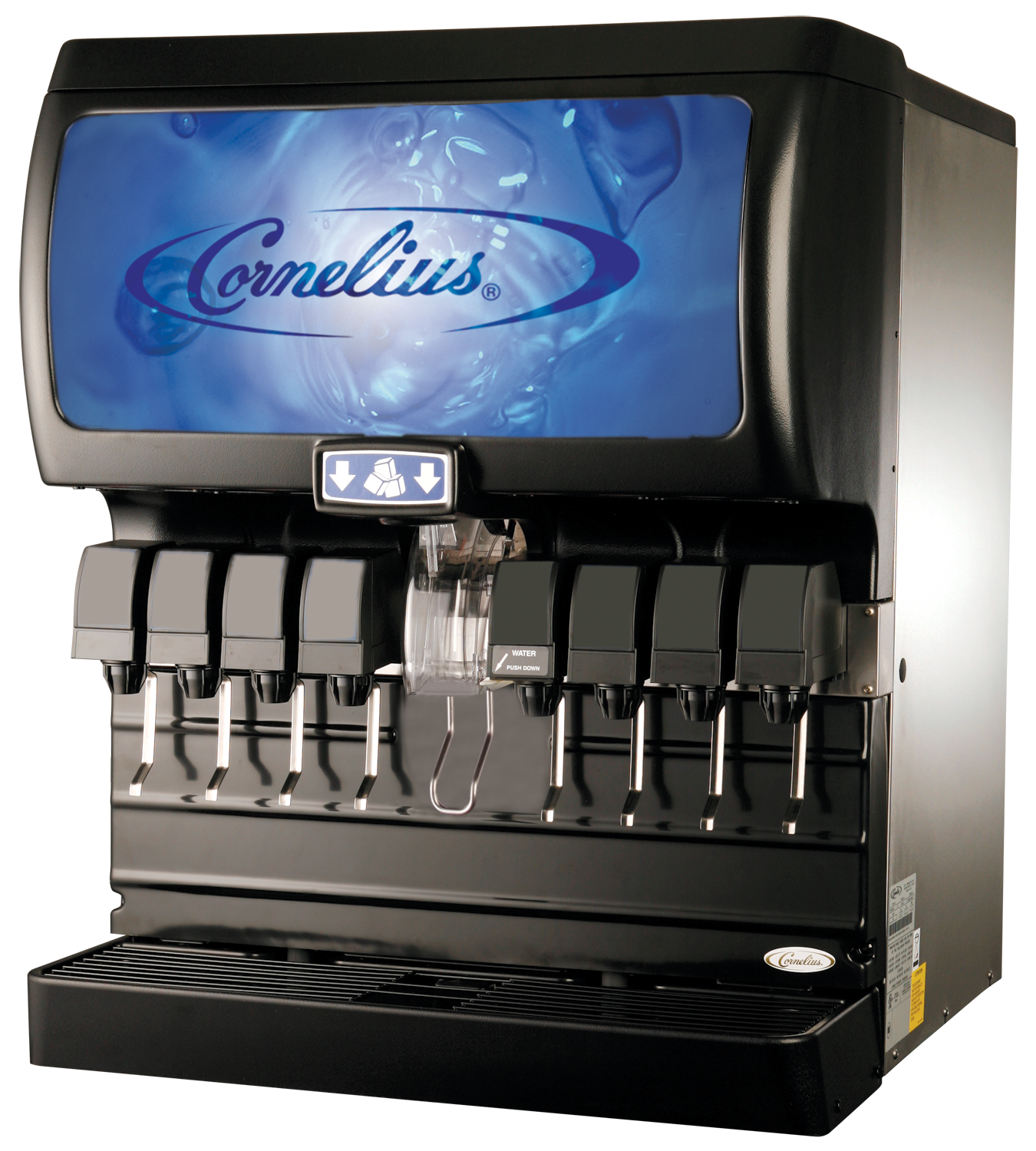

IDC215 with 10 UFB-1™ Sanitary Lever Valves Cold Carbonation with Total Flex, Generic Graphics

Features

  • Large Ice Capacity - 215 lb ice storage will meet your peak demand
  • Built in Cold Carbonation - Delivers bottle quality drinks very time
  • Illuminated Merchandiser - Creates high impact marketing messages with the ability to update with our front graphic change out no tools needed
  • Hopper Design - Automatically separates ice dispensed into cups from ice used to cool coldplate
  • Drip Tray Capacity - Reduces ice spillage
  • TotalFlex™ - Easily changes from carbonated to non-carbonated drinks
  • Modular Design - Allows for easy component access from the front of the unit
  • Readily Accepts Top-Mounted Ice Makers - Can top mount cuber and chunklet ice makers
  • Ice Hopper Design - Able to dispense cubed and chunklet ice due to our unique hopper geometry and is easy to clean no seams
  • Front Access to Components - Ease of service; easy front access to carbonator tank and motor

Product Downloads

Product Specs

Illustrated Parts

Ice Adaptor Kit Matrix

Accessory Sheet

Operator Manual

[ENG]

Installation Manual

[ENG]

621065275

Model Specifications

  • Product Categoryfountain
  • Agency ListingsUL, NSF, CE
  • Electricals Requirements115V / 60 Hz / 9 .3 Amps or 230 V / 50/60 Hz / 4 .7 Amps
  • Cup Clearance10 in (25.4 cm)
  • Number of Valves10
  • Ice Storage Capacity 215 lb (98 kg)
  • Valve TypeSanitary Lever
  • Unit Dimensions (Overall)30 in (76.2 cm) x 33.13 in (84.14 cm) x 36.69 in (93.18 cm) (W x D x H)
  • Shipping Weight350 lb (159 kg)
  • Beverage ManifoldingTotalFlex™
  • Standard Features Timed ice agitation, keyswitch and 4" legs
  • Drain Size 0 .75 in (19 .1 mm) pvc (npt) pipe or flexible tubing
  • Connections Water: 0.375 in (9 .5 mm) Syrup: 0.375 in (9 .5 mm)
