CNM1030AF6A

Nordic™ Elite CNM 1030

Nordic Elite Full Cuber 1000 LB 30″ Air Cooled 230V/60Hz

Features

  • Environmentally Responsible - Exceeds 2018 Department of Energy regulation. Up to 20% more efficient than previous Nordic models. R404A refrigerant
  • Easy Access - Forward facing evaporators on all models
  • Sanitation - Automated cleaning cycle
  • Unique Dual Exhaust - All air-cooled models allow for top or side hot-air discharge for increased installation flexibility

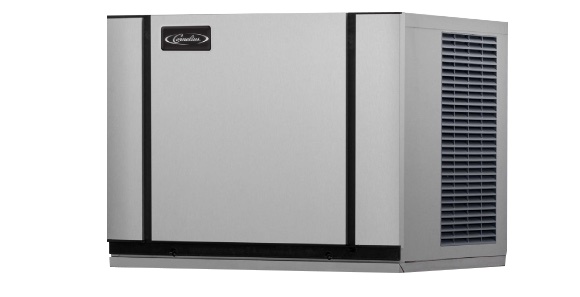

Product detail image

Product Downloads

download iconProduct Specs

download iconIllustrated Parts

download iconService Manual

[ENG]

Installation Manuals

CNM1030AF6A

Model Specifications

  • Product Categoryice
  • Agency ListingsUL, NSF
  • Dimensions30.25 in (76.84 cm) x 24.25 in (61.60 cm) x 21.25 in (53.98 cm) (W x D x H)
  • Electricals Requirements208-230 V / 60 Hz / 1 Phase
  • Water Pressure Required20 to 80 psi
  • Shipping Weight230 lb (104 kg)
  • Compressor/RefrigerantR404A
  • Ambient temperature50°F to 100°F
  • Type of MachineModular
  • Ice Production 70/50 lb932 lb (423 kg)
  • Type of CondenserAir Cooled
  • Ice Production 90/70 lb762 lb (346 kg)
  • Ice TypeR404A
  • Min. Circuit12.2
