721412101JU1

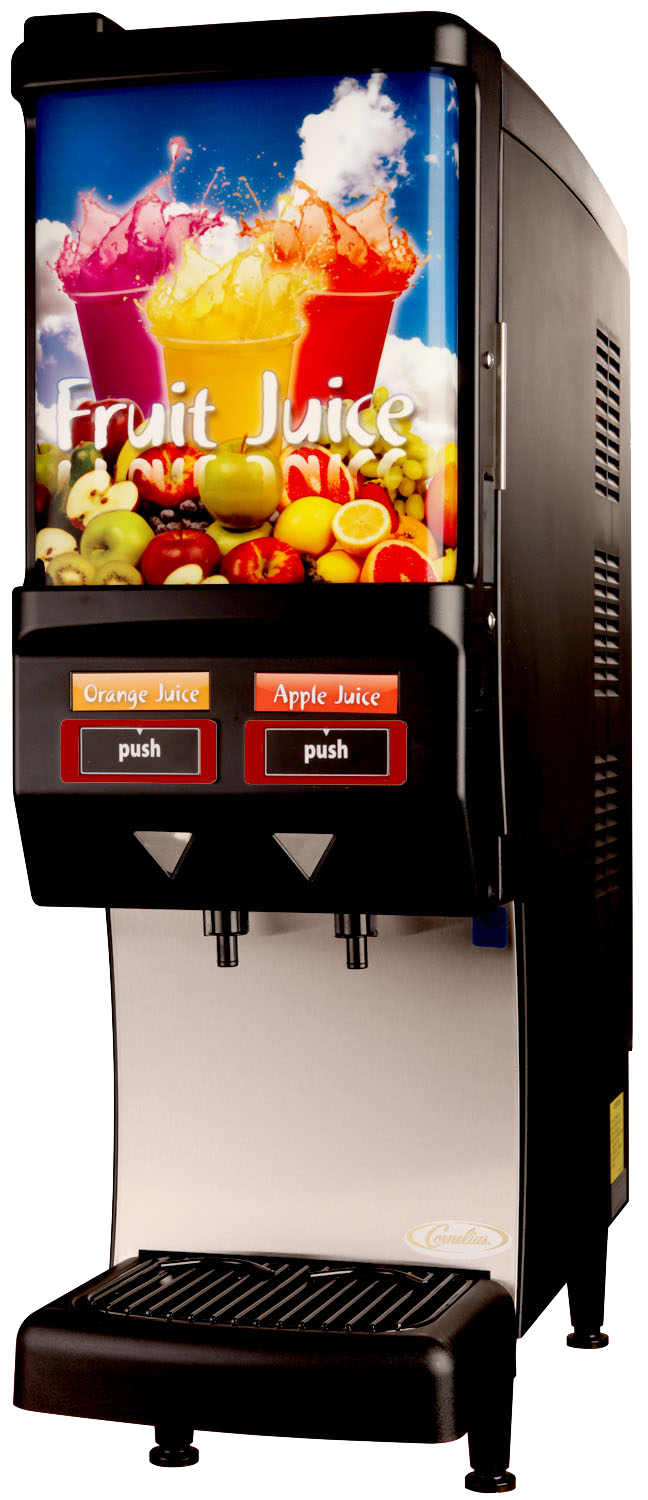

Quest Elite 2000

Quest Elite 2 Flavor, Illuminated, Single-Panel Merchandiser, Push Dispense, Sold-Out, 115V

Wide Product/Ratio Capability - Handles a wide range of post-mix products including juices with pulp, teas, and cold coffees
Large 6-8 lb Ice Bank - Provides cold drinks during peak demand
Patented Mixing System - Delivers consistent quality drinks with no stratification, slugging or dripping
Frost-Free Chill Compartment - Safely accommodates frozen, ambient or aseptic concentrate containers or BIB’s
LED Illuminated Graphics - Eliminates lost sales due to ‘lights out’ and reduces life costs
Modular Component Design - Ease of component access and replacement speeds service and maximizes up-time
Eye-Catching Merchandiser Options - Enhances selling power with choice of single-panel or multi-panel merchandiser
Dispensing Options - Improve user experience and operation type with the choice of portion control or push to dispense
'Sold Out' Indicator - Alerts operator to product out condition and maximizes sales

Manual IPL

[ENG] [SPAN]

Service Manual

[ENG] [SPAN]

721412101JU1

Product Categorynon-carbonated
Agency ListingsUL, NSF, CE
Dimensions34.0” H x 10.6” W x 24.5” D (86.4 cm x 26.9 cm x 62.2 cm)
Electricals Requirements115V / 60Hz
RefrigerationHermetically sealed system, R-134a refrigerant 5 fl.oz (142 g)
Ice Bank Size6-8lb
Flow RateAdjustable water flow rate from 1-2.2 fl.oz/sec
Water Connection Type0.375” (0.95 cm) SAE male flare SAE fitting on dispenser
Cup Clearance7 in (17.78 cm)
Number of Valves2
Shipping Weight125 lbs (56.7 kg)
Net WeightUnit: 104 lbs (47.2 kg) Counter Weight: 136 lb (61.7 kg)
Dispenser FinishBlack plastic with stainless steel front panel
Sold-Out IndicatorYes
Beverage CapacityTwo 0.9 gal (3.5 L) bottles
Dispense TypePush Button
Recommended ClearanceBack: 4 in (10.16 cm) Top: 12 in (30.48 cm) Sides: 4 in (10.16 cm)
Water Supply RequirementsOptimum: 50 psi (3.4 bar) @ 3 fl.oz/sec flow rate Max Pressure: 60 psi (4.1 bar)* Min Pressure: 30 psi (2.1 bar) *For water pressure exceeding the optimum supply specification, flow control set at 50 psi is recommended
